Engineering Model · CQ105

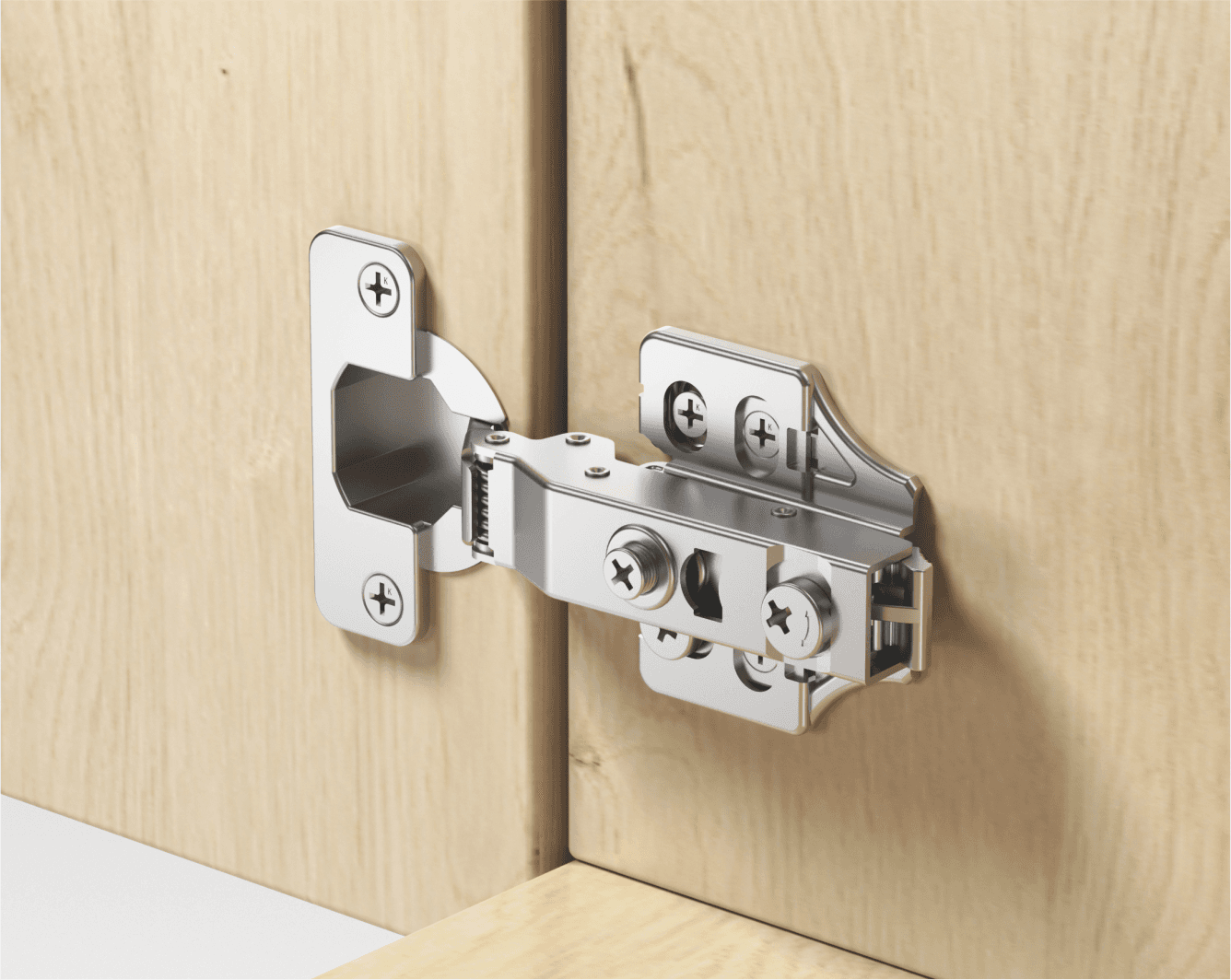

TERQ Clip-Quick 105° Soft-close Concealed Hinge
A 105° soft-close concealed hinge with Clip-Quick mounting and three overlay configurations.
Full overlay, half overlay, and inset cabinet-door applications.
Overview
Soft-close function with Clip-Quick mounting.
CQ105 combines a soft-close function with a clip-on hinge body for compatible separate mounting plates.
- 105°
- Opening angle
- Soft-close
- Closing function
- Separate mounting plate
- Mounting
Applications
Full overlay, half overlay, and inset cabinet-door applications.
Full Overlay
The door covers the cabinet side panel at the hinge side.
Half Overlay
Two adjacent doors share a center panel, with each door partially covering that panel.
Inset
The door is positioned inside the cabinet opening.
Technical specifications
Confirmed core parameters — CQ105
- Opening angle
- 105°
- Closing function
- Soft-close
- Mounting
- Separate mounting plate
- Overlay options
- Full Overlay / Half Overlay / Inset
- Cup drilling patterns
- A45 / A48 / A52
Installation
Mounting setup
The hinge body connects to a compatible separate mounting plate through the Clip-Quick system.
TERQ Function System
Clip-Quick
Tool-free connection to a compatible separate mounting plate.
- Tool-free connection
- Faster installation and removal
- Easier adjustment and servicing
Mounting Plates & Accessories
Related configuration components
The components below are Registry-confirmed as related to CQ105. Fixing method, quantities, and final applicability require TERQ Technical Support review before ordering.
Mounting Plates
Cruciform Mounting Plate — 2-Point Fixing, H0
Cruciform Mounting Plate — 4-Point Fixing, H0
3D Cruciform Mounting Plate — 3-Point Fixing, H0
Covers
Cup Cover
Arm Cover
Accessories
M8 Round Dowel
Select according to the board and drilling method.
M10 Round Dowel
Select according to the board and drilling method.
Chipboard Screw
For conventional wood-screw fixing.
Double-bridge Dowel S32-5-8
Select according to the mounting-hole configuration.
Big Double-bridge Dowel S32-5-8
Select according to the mounting-hole configuration.
Long Double-bridge Dowel S32-5-10
Select according to the mounting-hole configuration.
Double-bridge Dowel M10
Select according to the mounting-hole configuration.
105° Hinge 90° Restrictor
Optional where a 90° opening limit is required.
Multi-function Drilling Template
Supports the listed cup and mounting drilling positions.
Confirm the right CQ105 configuration.
Share the application, required configuration, mounting method, and expected order quantity with TERQ.
