Engineering Model · CQS100

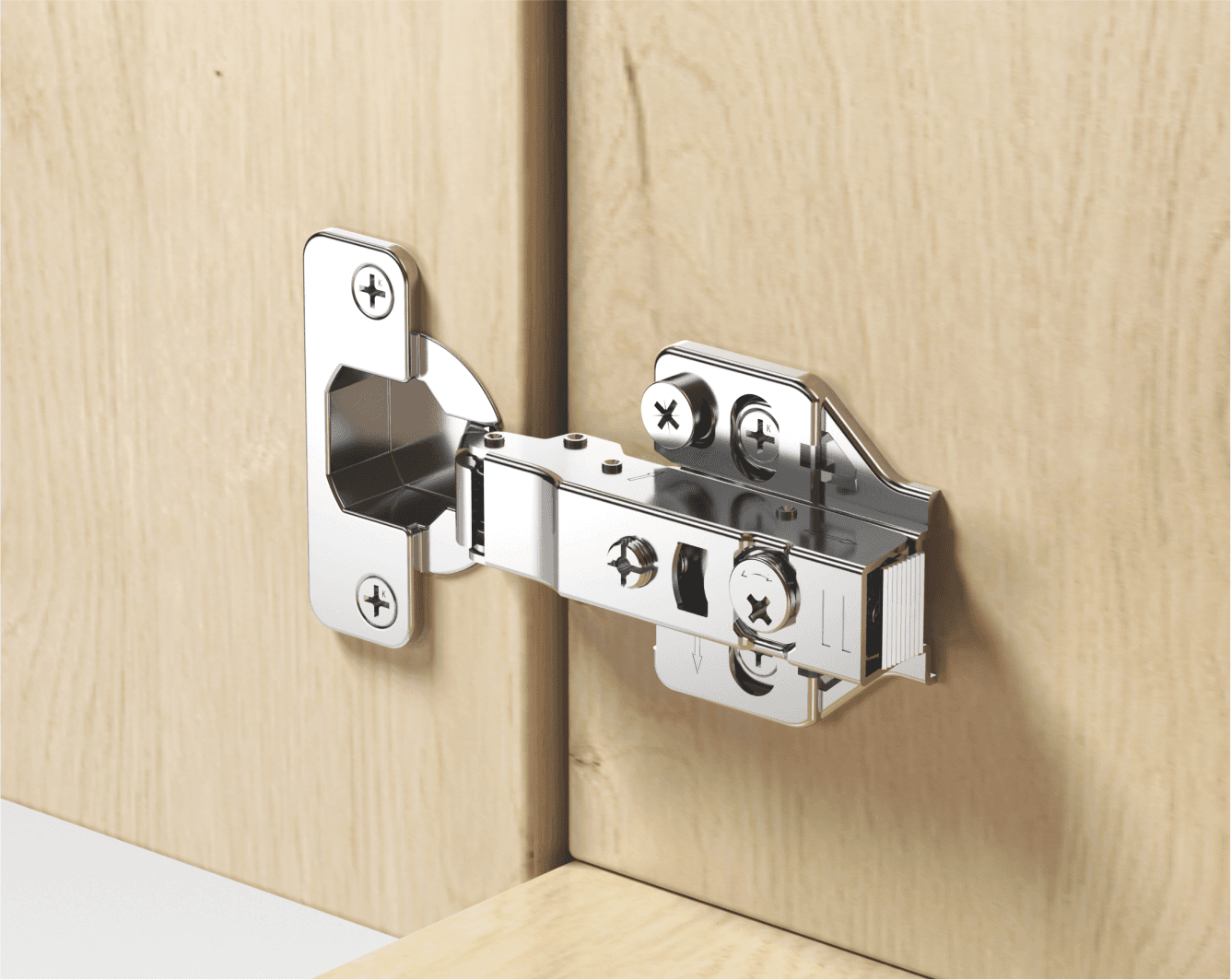

TERQ Clip-Quick 100° Stainless Steel Concealed Hinge
A 100° stainless steel concealed hinge with Clip-Quick mounting and controlled function, overlay, and drilling selections.
Full overlay, half overlay, and inset cabinet-door applications with soft-close or without-soft-close body options.
Overview
Stainless steel structure with two function options.
CQS100 provides soft-close and without-soft-close body selections across three overlay configurations.
- 100°
- Opening angle
- Stainless steel
- Material
- Soft-close / Without soft-close
- Function options
Applications
Full overlay, half overlay, and inset cabinet-door applications with soft-close or without-soft-close body options.
Full Overlay
The door covers the cabinet side panel at the hinge side.
Half Overlay
Two adjacent doors share a center panel, with each door partially covering that panel.
Inset
The door is positioned inside the cabinet opening.
Technical specifications
Confirmed core parameters — CQS100
- Opening angle
- 100°
- Material
- Stainless steel
- Function options
- Soft-close / Without soft-close
- Mounting
- Separate mounting plate
- Overlay options
- Full Overlay / Half Overlay / Inset
- Cup drilling patterns
- A45 / A48 / A52
Installation
Mounting setup
The hinge body connects to a compatible stainless steel mounting plate through the Clip-Quick system.
TERQ Function System
Clip-Quick
Tool-free connection to a compatible separate mounting plate.
- Tool-free connection
- Faster installation and removal
- Easier adjustment and servicing
Mounting Plates & Accessories
Related configuration components
The components below are Registry-confirmed as related to CQS100. Fixing method, quantities, and final applicability require TERQ Technical Support review before ordering.
Mounting Plates
Stainless Steel Cruciform Mounting Plate — 2-Point Fixing, H0
Stainless Steel Cruciform Mounting Plate — 4-Point Fixing, H0
Stainless Steel 3D Cruciform Mounting Plate — 2-Point Fixing, H0
Stainless Steel Cruciform Mounting Plate — 2-Point Fixing, H2
Stainless Steel Cruciform Mounting Plate — 4-Point Fixing, H2
Stainless Steel Cruciform Mounting Plate — 4-Point Fixing, H4
Covers
Cup Cover
Arm Cover
Accessories
M8 Round Dowel
Select according to the board and drilling method.
M10 Round Dowel
Select according to the board and drilling method.
Chipboard Screw
For conventional wood-screw fixing.
Double-bridge Dowel S32-5-8
Select according to the mounting-hole configuration.
Big Double-bridge Dowel S32-5-8
Select according to the mounting-hole configuration.
Long Double-bridge Dowel S32-5-10
Select according to the mounting-hole configuration.
Double-bridge Dowel M10
Select according to the mounting-hole configuration.
105° Hinge 90° Restrictor
Optional where a 90° opening limit is required.
Multi-function Drilling Template
Supports the listed cup and mounting drilling positions.
Confirm the right CQS100 configuration.
Share the application, required configuration, mounting method, and expected order quantity with TERQ.
