Engineering Model · FFL105

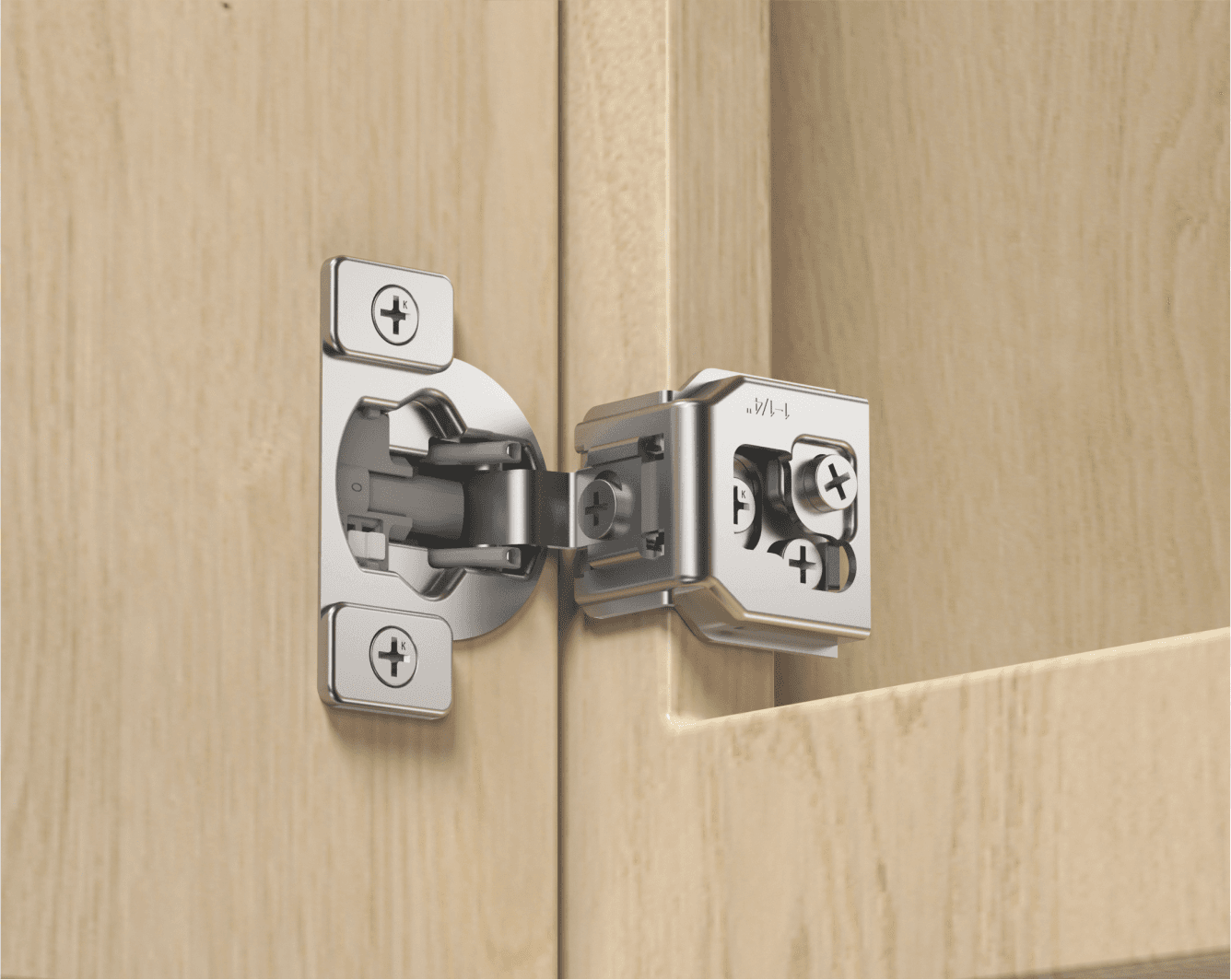

TERQ 105° Large-overlay Face-frame Concealed Hinge with Soft-close On/Off Switch
A 105° face-frame concealed hinge with a soft-close On/Off switch, integrated mounting, and six exact overlay choices.
Face-frame cabinet applications requiring a large-overlay selection.
Overview
Face-frame structure for large-overlay selection.
FFL105 combines the hinge body and mounting structure in one large-overlay face-frame configuration.
- 105°
- Opening angle
- Face Frame
- Cabinet structure
- Soft-close On/Off switch
- Function
Applications
Face-frame cabinet applications requiring a large-overlay selection.
Select the exact overlay dimension required for the face-frame cabinet application. Each value maps directly to one body configuration.
28.5 mm
1-1/8 in
31.8 mm
1-1/4 in
33.3 mm
1-5/16 in
34.9 mm
1-3/8 in
36.5 mm
1-7/16 in
38.1 mm
1-1/2 in
Technical specifications
Confirmed core parameters — FFL105
- Opening angle
- 105°
- Cabinet structure
- Face Frame
- Function
- Soft-close On/Off switch
- Mounting
- Integrated mounting
- Cup drilling pattern
- A45 — fixed
- Overlay range
- 28.5–38.1 mm / 1-1/8–1-1/2 in
Installation
Mounting setup
The mounting structure is integrated, the cup drilling pattern is fixed at A45, and no separate mounting plate is selected.
TERQ Product Function
Soft-close On/Off
- Function
- Soft-close On/Off switch
- Mounting
- Integrated mounting
- Cup drilling pattern
- A45 — fixed
Mounting Plates & Accessories
Related configuration components
The components below are Registry-confirmed as related to FFL105. Fixing method, quantities, and final applicability require TERQ Technical Support review before ordering.
Accessories
M8 Round Dowel
Select according to the board and drilling method.
M10 Round Dowel
Select according to the board and drilling method.
Chipboard Screw
For conventional wood-screw fixing.
Face-frame Hinge 90° Restrictor
Optional where a 90° opening limit is required.
Multi-function Drilling Template
Supports the listed cup and mounting drilling positions.
Confirm the right FFL105 configuration.
Share the application, required configuration, mounting method, and expected order quantity with TERQ.
