Engineering Model · GS155

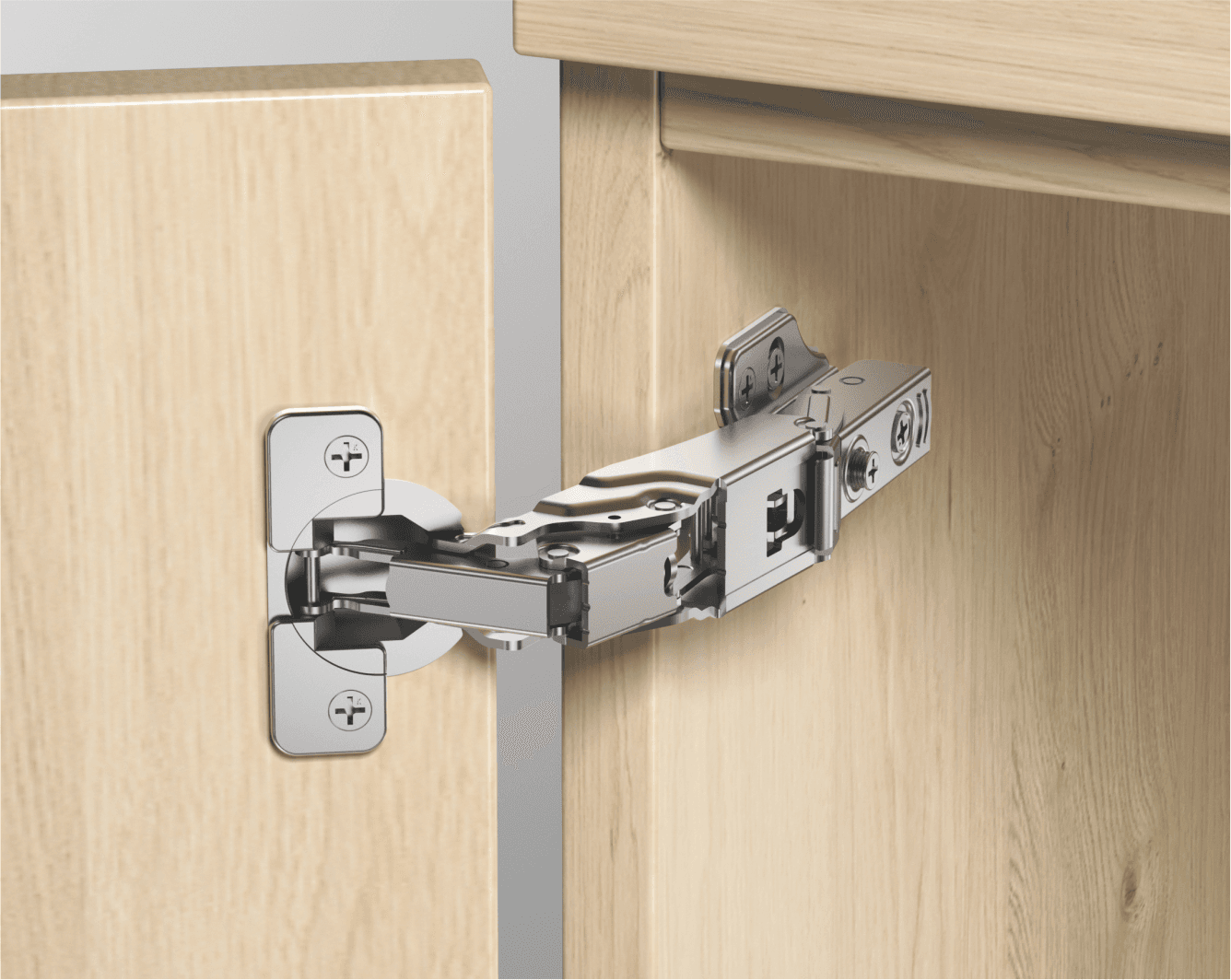

TERQ Glidex-Sys 155° Wide-angle Concealed Hinge
A 155° Glidex-Sys wide-angle concealed hinge with controlled overlay, drilling, and mounting-plate choices.
Full overlay, half overlay, and inset cabinet-door applications requiring a 155° opening angle.
Overview
Wide-angle opening with controlled plate heights.
GS155 combines a 155° opening angle with three overlay configurations and compatible A1-family mounting plates.
- 155°
- Opening angle
- Wide-angle concealed hinge
- Hinge format
- Separate mounting plate
- Mounting
Applications
Full overlay, half overlay, and inset cabinet-door applications requiring a 155° opening angle.
Full Overlay
The door covers the cabinet side panel at the hinge side.
Half Overlay
Two adjacent doors share a center panel, with each door partially covering that panel.
Inset
The door is positioned inside the cabinet opening.
Technical specifications
Confirmed core parameters — GS155
- Opening angle
- 155°
- Hinge format
- Wide-angle concealed hinge
- Mounting
- Separate mounting plate
- Overlay options
- Full Overlay / Half Overlay / Inset
- Cup drilling patterns
- Z45 / Z48 / Z52
Installation
Mounting setup
Select the required Z drilling pattern and a compatible mounting plate height for the application.
TERQ Function System
Glidex-Sys
A controlled hinge system spanning five product configurations.
Explore Glidex-Sys system detailsMounting Plates & Accessories
Related configuration components
The components below are Registry-confirmed as related to GS155. Fixing method, quantities, and final applicability require TERQ Technical Support review before ordering.
Mounting Plates
Cruciform Mounting Plate — 2-Point Fixing, H0
Cruciform Mounting Plate — 2-Point Fixing, H9
Cruciform Mounting Plate — 2-Point Fixing, H17
Cruciform Mounting Plate — 4-Point Fixing, H0
Cruciform Mounting Plate — 4-Point Fixing, H9
Cruciform Mounting Plate — 4-Point Fixing, H17
3D Cruciform Mounting Plate — 3-Point Fixing, H0
3D Cruciform Mounting Plate — 3-Point Fixing, H9
3D Cruciform Mounting Plate — 3-Point Fixing, H17
Accessories
M8 Round Dowel
Select according to the board and drilling method.
M10 Round Dowel
Select according to the board and drilling method.
Chipboard Screw
For conventional wood-screw fixing.
Double-bridge Dowel S32-5-8
Select according to the mounting-hole configuration.
Big Double-bridge Dowel S32-5-8
Select according to the mounting-hole configuration.
Long Double-bridge Dowel S32-5-10
Select according to the mounting-hole configuration.
Double-bridge Dowel M10
Select according to the mounting-hole configuration.
Multi-function Drilling Template
Supports the listed cup and mounting drilling positions.
Confirm the right GS155 configuration.
Share the application, required configuration, mounting method, and expected order quantity with TERQ.
