Engineering Model · GSA105

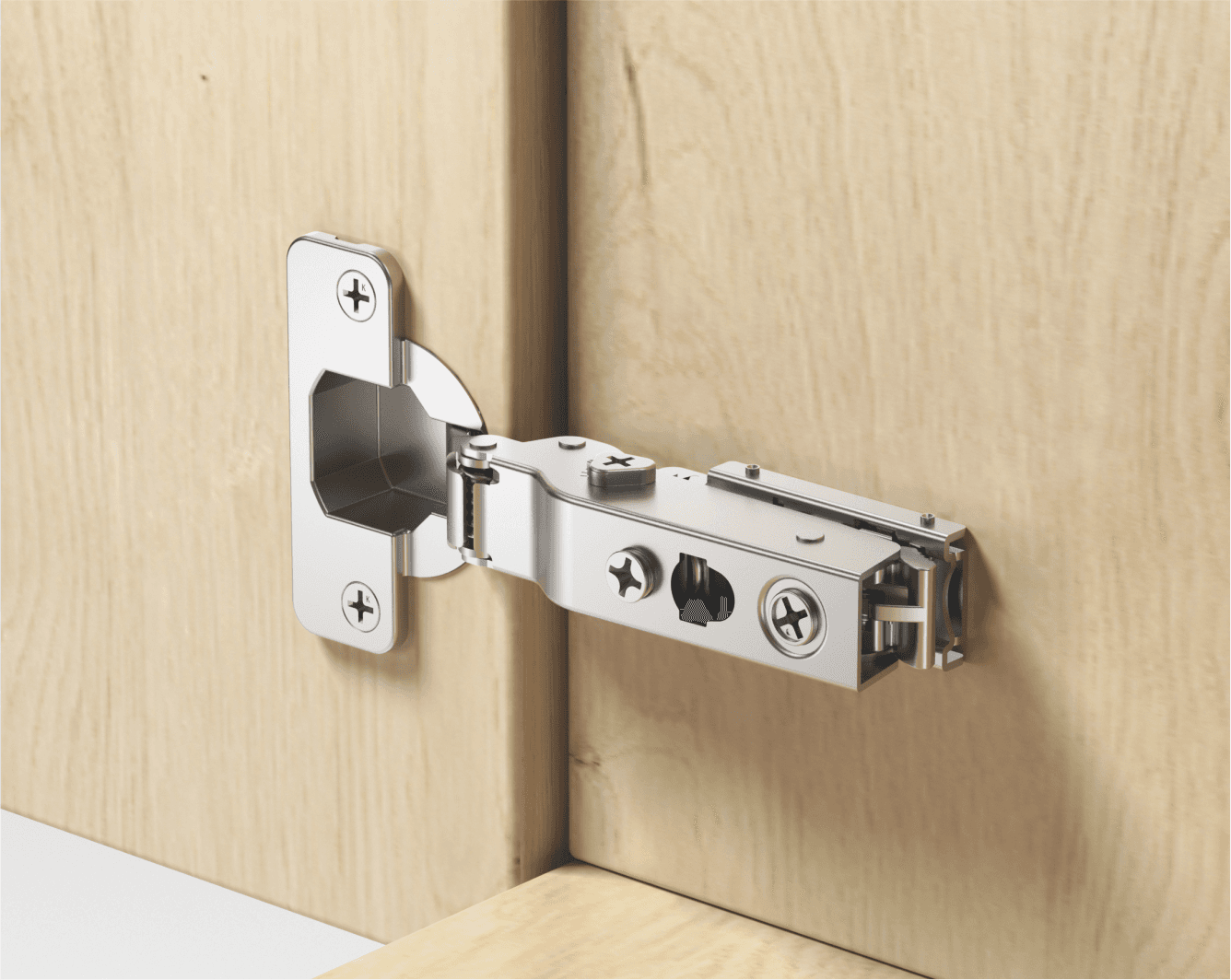

TERQ Glidex-Sys 105° Clip-on Concealed Hinge with Adjustable Damper
A 105° Glidex-Sys clip-on concealed hinge with an adjustable damper and controlled configuration options.
Full overlay, half overlay, and inset cabinet-door applications.
Overview
Adjustable damper in a clip-on configuration.
GSA105 combines an adjustable damper with a clip-on hinge body for compatible separate mounting plates.
- 105°
- Opening angle
- Adjustable damper
- Closing function
- Separate mounting plate
- Mounting
Applications
Full overlay, half overlay, and inset cabinet-door applications.
Full Overlay
The door covers the cabinet side panel at the hinge side.
Half Overlay
Two adjacent doors share a center panel, with each door partially covering that panel.
Inset
The door is positioned inside the cabinet opening.
Technical specifications
Confirmed core parameters — GSA105
- Opening angle
- 105°
- Closing function
- Adjustable damper
- Mounting
- Separate mounting plate
- Overlay options
- Full Overlay / Half Overlay / Inset
- Cup drilling patterns
- A45 / A48 / A52
Installation
Mounting setup
Select a compatible Glidex-Sys mounting plate and the required fixing method for the application.
TERQ Function System
Glidex-Sys
A controlled hinge system spanning five product configurations.
Explore Glidex-Sys system detailsMounting Plates & Accessories
Related configuration components
The components below are Registry-confirmed as related to GSA105. Fixing method, quantities, and final applicability require TERQ Technical Support review before ordering.
Mounting Plates
3D In-line Mounting Plate — 2-Point Fixing, H0
3D Cruciform Mounting Plate — 2-Point Fixing, H0
Cruciform Mounting Plate — 2-Point Fixing, H0
Cruciform Mounting Plate — 4-Point Fixing, H0
Covers
Cup Cover
Curved Bevel Arm Cover — Full/Half Overlay
For Full/Half Overlay
Flat Bevel Arm Cover — Full/Half Overlay
For Full/Half Overlay
Curved Bevel Arm Cover — Inset
For Inset
Flat Bevel Arm Cover — Inset
For Inset
Accessories
M8 Round Dowel
Select according to the board and drilling method.
M10 Round Dowel
Select according to the board and drilling method.
Chipboard Screw
For conventional wood-screw fixing.
Double-bridge Dowel S32-5-8
Select according to the mounting-hole configuration.
Big Double-bridge Dowel S32-5-8
Select according to the mounting-hole configuration.
Long Double-bridge Dowel S32-5-10
Select according to the mounting-hole configuration.
Double-bridge Dowel M10
Select according to the mounting-hole configuration.
105° Hinge 90° Restrictor
Optional where a 90° opening limit is required.
Multi-function Drilling Template
Supports the listed cup and mounting drilling positions.
Confirm the right GSA105 configuration.
Share the application, required configuration, mounting method, and expected order quantity with TERQ.
