Engineering Model · GSM105

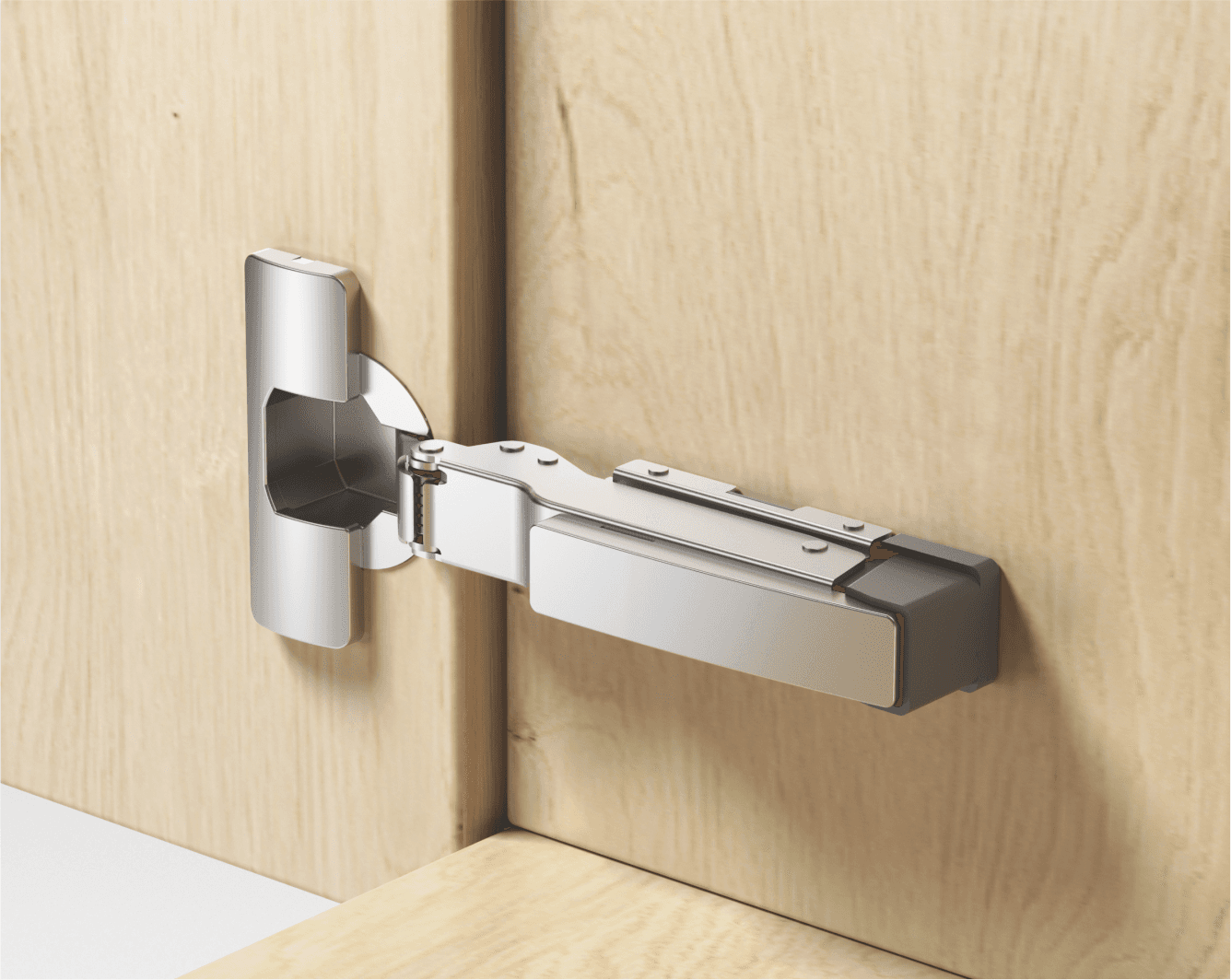

TERQ Glidex-Sys 105° Monobloc Concealed Hinge with Integrated In-line Plate
A 105° Glidex-Sys monobloc concealed hinge with an integrated in-line mounting plate.
Full overlay, half overlay, and inset cabinet-door applications.
Overview
Monobloc structure with integrated in-line mounting.
GSM105 combines the hinge body and in-line mounting plate in one integrated configuration.
- 105°
- Opening angle
- Monobloc concealed hinge
- Hinge format
- Integrated in-line plate
- Mounting
Applications
Full overlay, half overlay, and inset cabinet-door applications.
Full Overlay
The door covers the cabinet side panel at the hinge side.
Half Overlay
Two adjacent doors share a center panel, with each door partially covering that panel.
Inset
The door is positioned inside the cabinet opening.
Technical specifications
Confirmed core parameters — GSM105
- Opening angle
- 105°
- Hinge format
- Monobloc concealed hinge
- Mounting
- Integrated in-line plate
- Overlay options
- Full Overlay / Half Overlay / Inset
- Cup drilling patterns
- A45 / A48 / A52
Installation
Mounting setup
The integrated in-line plate removes the need to select a separate mounting plate.
TERQ Function System
Glidex-Sys
A controlled hinge system spanning five product configurations.
Explore Glidex-Sys system detailsMounting Plates & Accessories
Related configuration components
The components below are Registry-confirmed as related to GSM105. Fixing method, quantities, and final applicability require TERQ Technical Support review before ordering.
Covers
Cup Cover
GSM105 Full/Half Overlay Arm Cover
For Full/Half Overlay
GSM105 Inset Arm Cover
For Inset
Accessories
M8 Round Dowel
Select according to the board and drilling method.
M10 Round Dowel
Select according to the board and drilling method.
Chipboard Screw
For conventional wood-screw fixing.
Double-bridge Dowel S32-5-8
Select according to the mounting-hole configuration.
Big Double-bridge Dowel S32-5-8
Select according to the mounting-hole configuration.
Long Double-bridge Dowel S32-5-10
Select according to the mounting-hole configuration.
Double-bridge Dowel M10
Select according to the mounting-hole configuration.
105° Hinge 90° Restrictor
Optional where a 90° opening limit is required.
Multi-function Drilling Template
Supports the listed cup and mounting drilling positions.
Confirm the right GSM105 configuration.
Share the application, required configuration, mounting method, and expected order quantity with TERQ.
