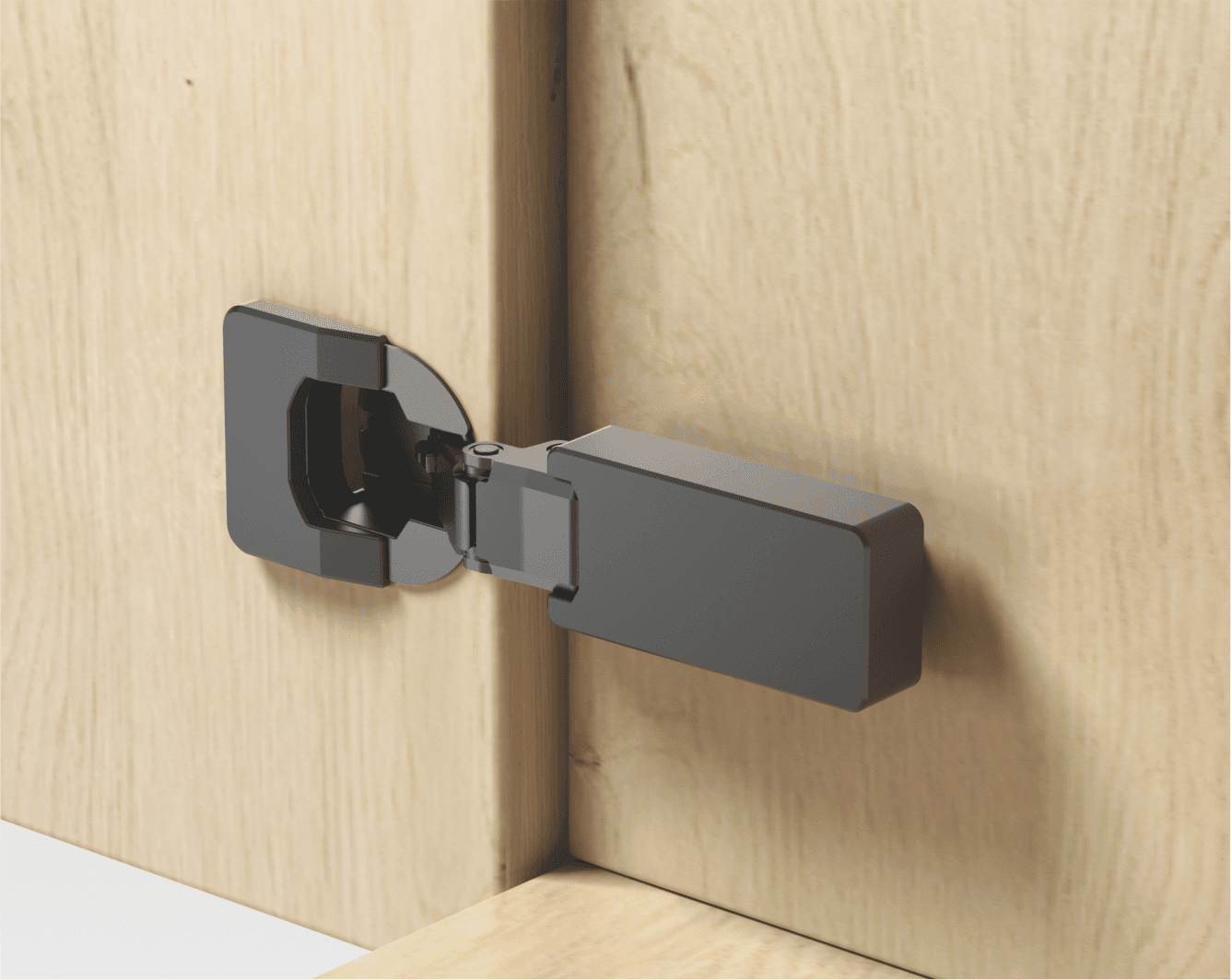

TERQ Signature Design Series — Glidex-Sys 100° Signature Concealed Hinge
A 100° Signature Design Series concealed hinge with integrated mounting, fixed A24 drilling, and controlled finish sets.
Full overlay, half overlay, and inset cabinet-door applications with fixed A24 drilling.
Overview
Fixed A24 configuration with integrated mounting.
SD100 uses one controlled A24 drilling configuration and does not require a separate mounting plate.
- 100°
- Opening angle
- Signature Design Series
- Product series
- Integrated mounting
- Mounting
Applications
Full overlay, half overlay, and inset cabinet-door applications with fixed A24 drilling.
Full Overlay
The door covers the cabinet side panel at the hinge side.
Half Overlay
Two adjacent doors share a center panel, with each door partially covering that panel.
Inset
The door is positioned inside the cabinet opening.
Technical specifications
Confirmed core parameters — SD100
- Opening angle
- 100°
- Product series
- Signature Design Series
- Mounting
- Integrated mounting
- Overlay options
- Full Overlay / Half Overlay / Inset
- Cup drilling pattern
- A24 — fixed
- Finish selection
- Signature Finish cover set
Installation
Mounting setup
The integrated mounting structure and fixed A24 drilling define the complete body configuration.
TERQ Function System
Glidex-Sys
A controlled hinge system spanning five product configurations.
Explore Glidex-Sys system detailsMounting Plates & Accessories
Related configuration components
The components below are Registry-confirmed as related to SD100. Fixing method, quantities, and final applicability require TERQ Technical Support review before ordering.
Signature Finish
Signature Finish Cover Set — Black
Signature Finish Cover Set — White
Signature Finish Cover Set — Gold
Signature Finish Cover Set — Grey
Signature Finish Cover Set — Brown
Accessories
Chipboard Screw
For conventional wood-screw fixing.
Confirm the right SD100 configuration.
Share the application, required configuration, mounting method, and expected order quantity with TERQ.
