Clip-Quick™
Instant Snap-In. Tool-Free Precision.

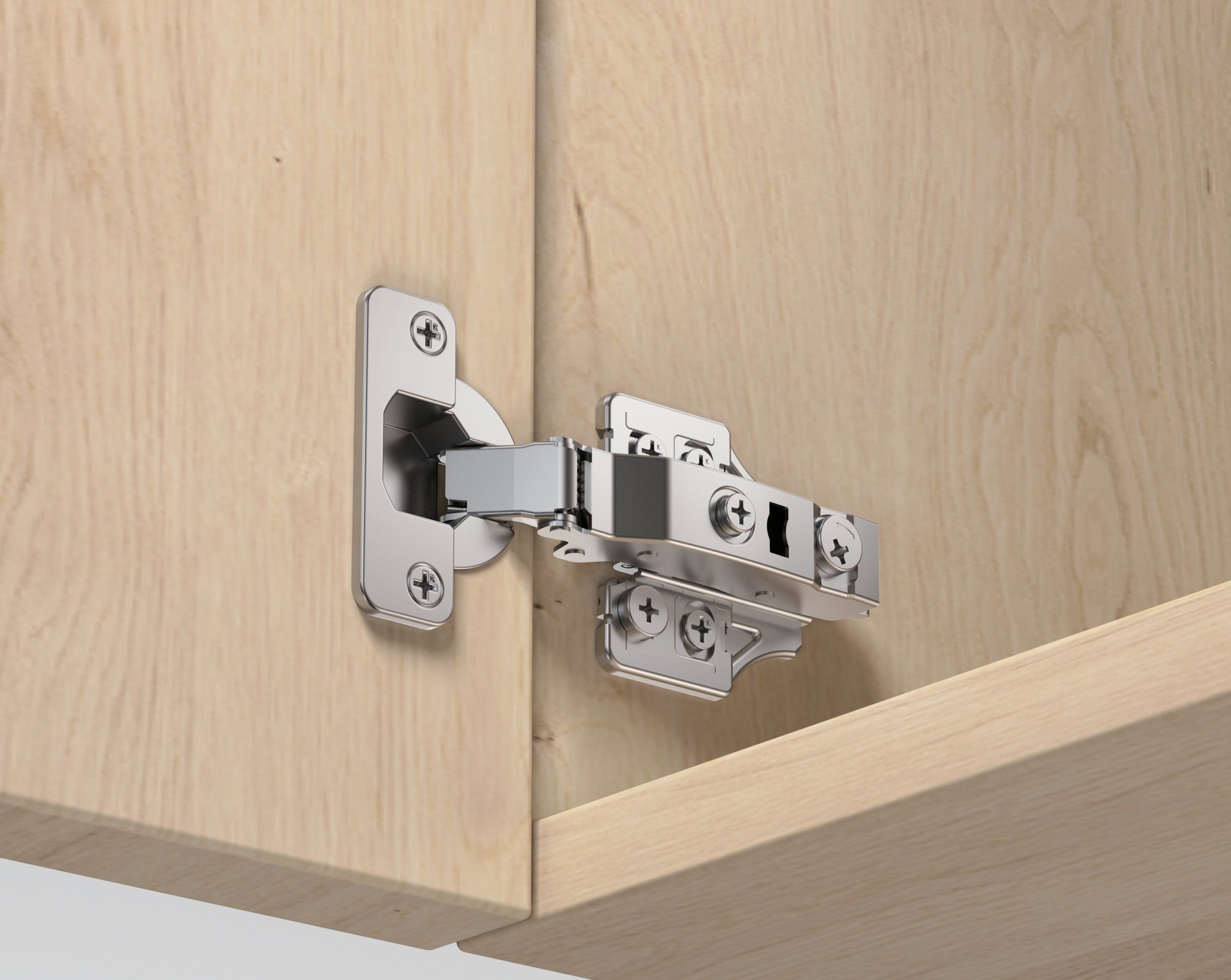

Clip-Quick™ connects a compatible hinge arm to its mounting plate without tools. Align the components, press to engage, and use the release mechanism for fast removal, adjustment or servicing.

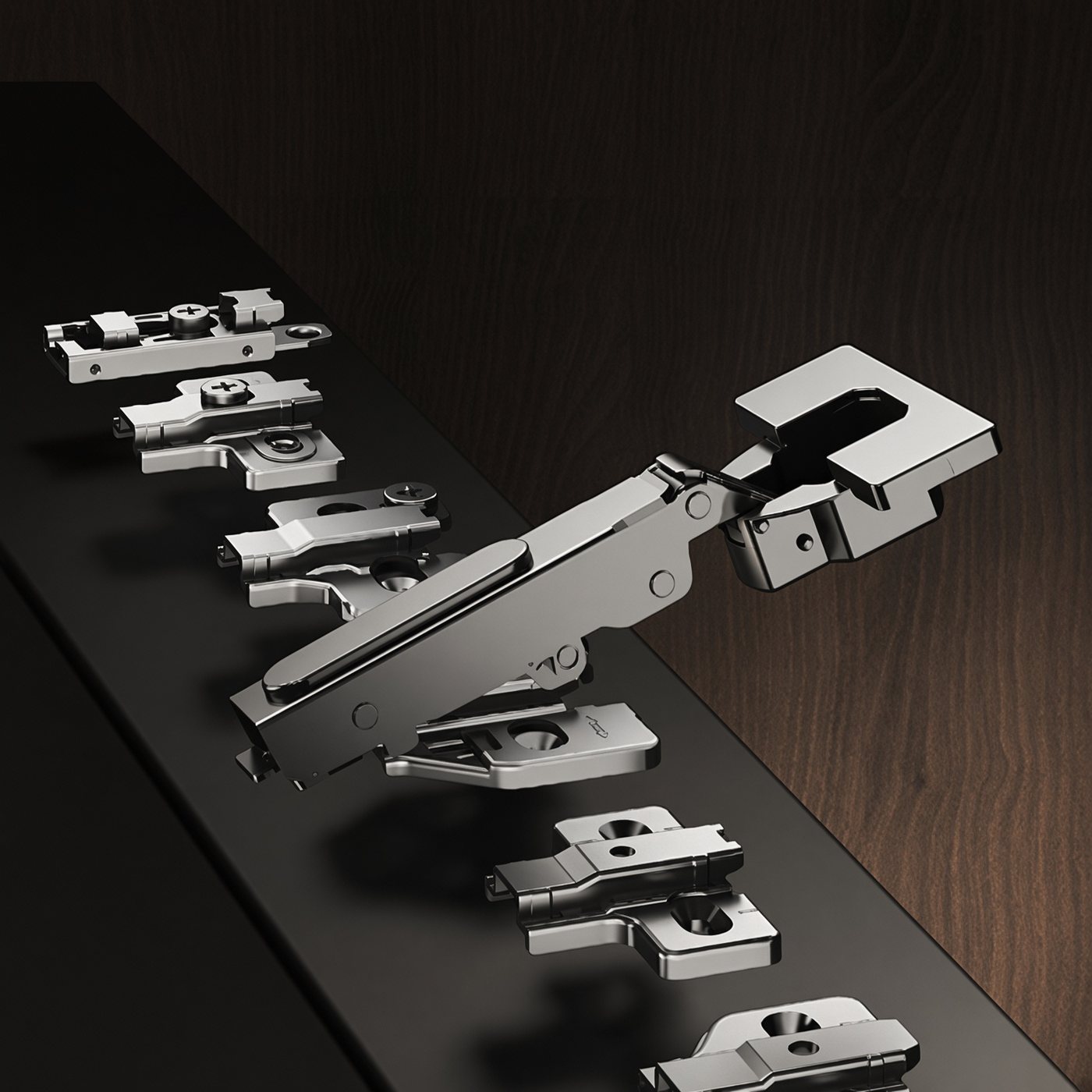

Exploded view: the arm hooks on at the front and locks onto the plate at the rear.
Align, press & click, release
What it delivers
- Fast, tool-free mountingAlign, press, engage. The arm locks onto its plate in a single movement, with no screwdriver, for fast installation and real labor savings in the factory and on site.
- Audible & tactile clickA distinct click, felt as well as heard, confirms every connection, so an incomplete engagement is easy to catch in series production.
- Finger-release leverA hidden release lever at the end of the arm frees the door with one hand, even in confined cabinet interiors.
- Self-aligning, anti-sag interlockMulti-point locating teeth guide the arm into position as it engages, absorbing small tolerances and keeping it firmly seated, without loosening or sag, through years of daily use.
Operating details vary by model. GSM105 and the face-frame hinges FFS105 and FFL105 do not use a separate plate.
Works with mounting plates
The plate is fixed to the cabinet first and the hinge clips on, so doors go up faster and can be removed for finishing or servicing.
Mounting plates & accessories- Separate plateChoose the plate form, fixing points and height to suit the cabinet; the hinge body stays the same. Three-axis adjustment and 3D plates handle final alignment.
- Faster installationPlates can be fitted and aligned before the doors arrive; the doors then clip on.
- Door removalA press on the finger-release lever frees the door; refitting returns it to the same plate and the same alignment.
- SD100Uses Clip-Quick™ with its dedicated 32 mm in-line plate, included with the hinge.

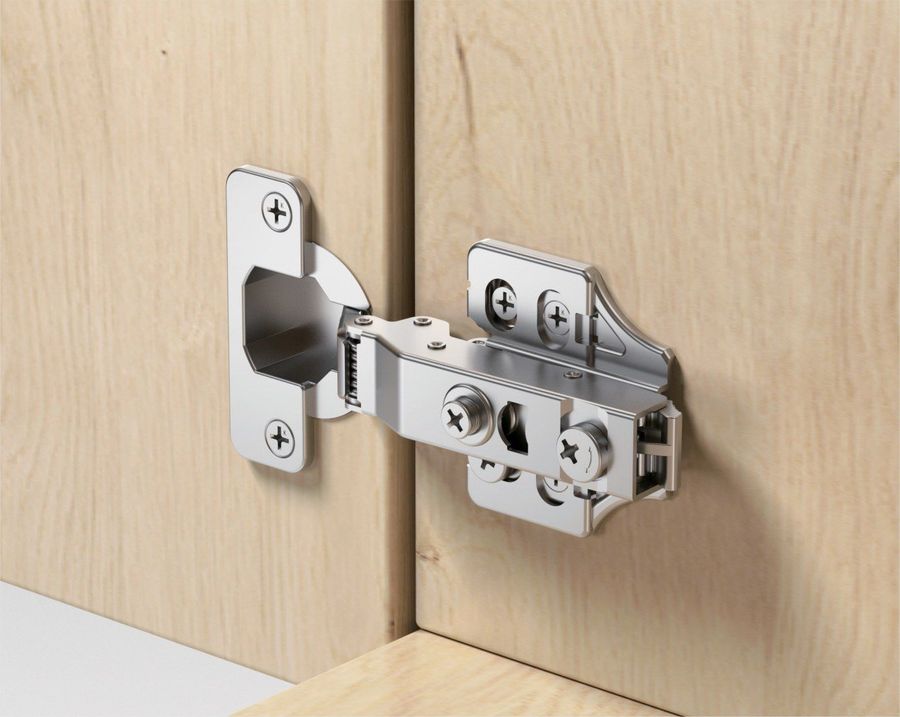

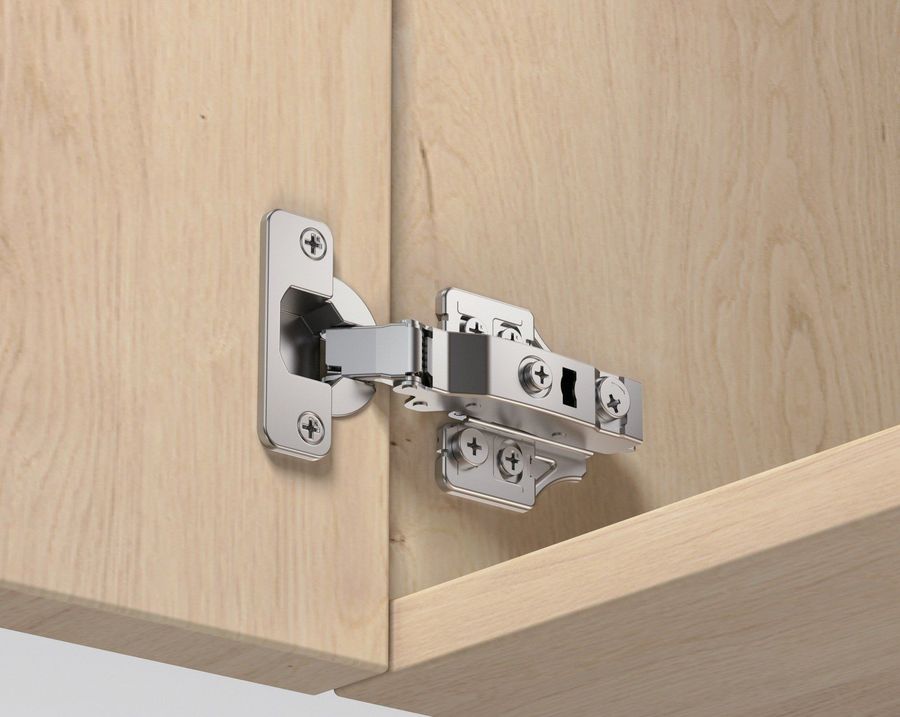

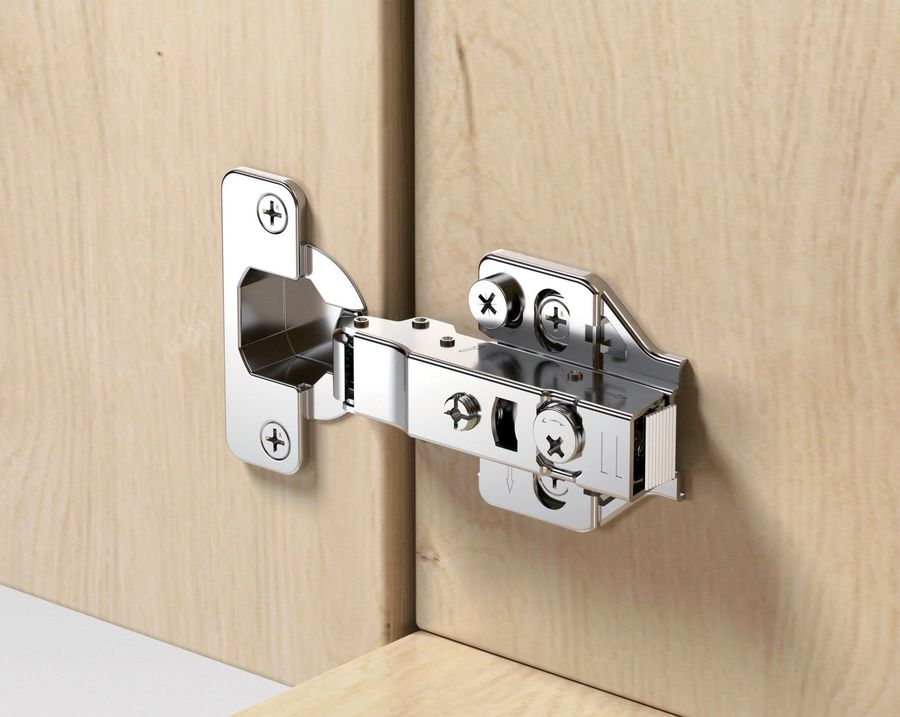

Hinges with Clip-Quick™
Documents
High-resolution PDFs: Catalogue (47 MB) · Selection & Ordering Guide (15.7 MB)
Get technical guidance for your application
Whether you are optimizing an existing production line or specifying hardware for a new program, share your cabinet geometry and functional requirements with us. Our team will recommend the ideal hinge and mounting plate configuration, supported by tailored evaluation sample kits for your production testing.
- Application engineering support
- Evaluation sample kits
- Custom OEM specifications
- Flexible order volumes
- B2B supply consistency
