Glidex-Sys™
Engineered for Silky-Smooth Motion and Quiet Closure.
Glidex-Sys™ coordinates defined stages of the hinge’s opening and closing cycle, supporting controlled movement, consistent deceleration and a quiet approach to the closed position. The result is a movement that feels calm, controlled and comfortable in everyday use.

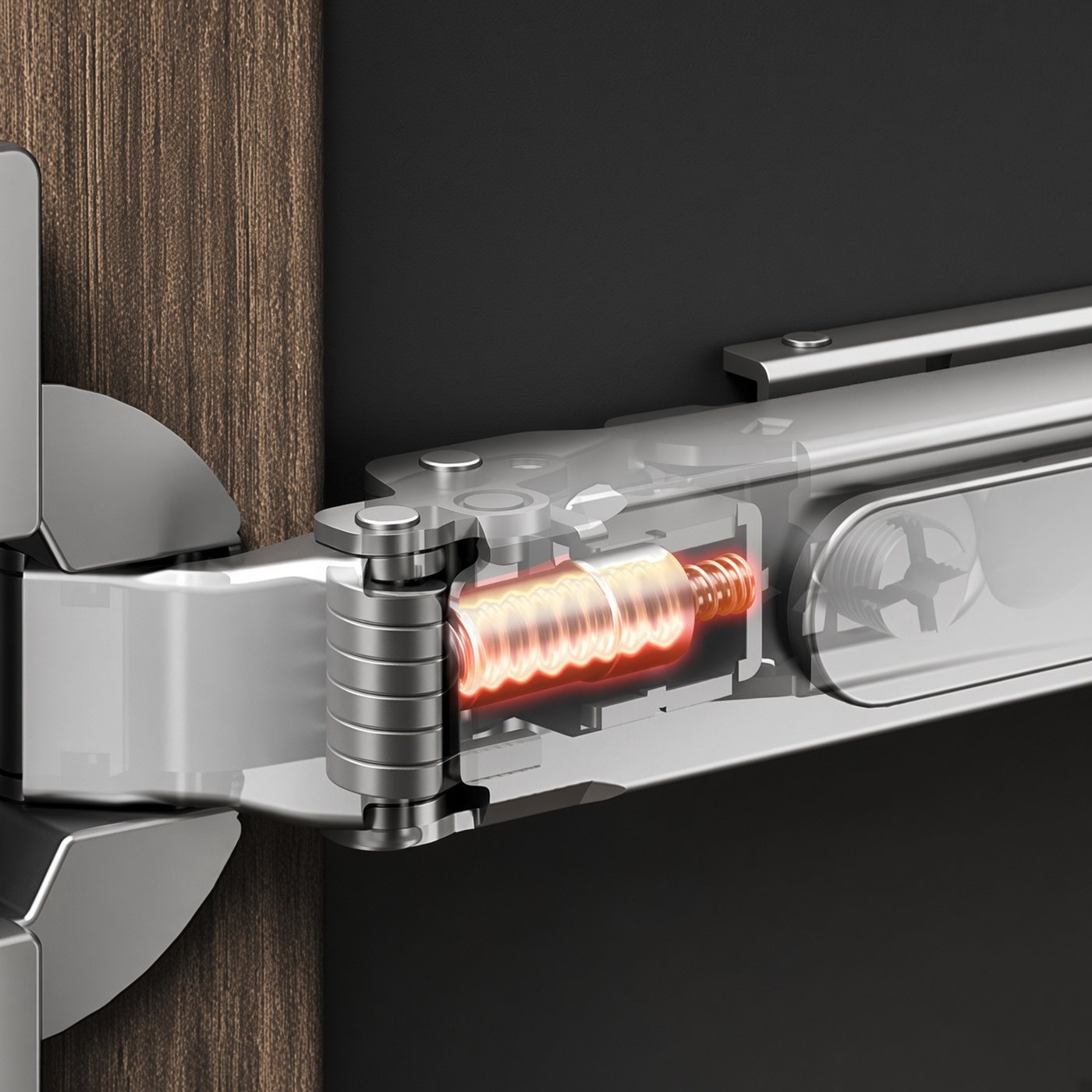

Cutaway: the high-viscosity, dual-valve hydraulic damper inside the hinge arm sets the pace of every close.
Four stages of fluid control
What it delivers
- Weighted feel, smooth motionA composed, weighted feel from the first touch. Internal fluid damping absorbs friction and vibration for an effortless, smooth glide.
- Opening-end cushioningNear full opening, damping absorbs excess energy, softening end-of-travel impact and protecting the cabinet side panel.
- Free-stop holdFrom 45° to full opening, the door stays where it is left: balanced, quiet and hands-free.
- Dual-valve, quiet closureA high-viscosity, dual-valve hydraulic damper sets a smooth, linear deceleration, drawing the door to a flush, quiet close without bounce.
Operating details vary by model; see each product page for the functions it includes.
Model-specific control
The four stages run through the family; some models add direct control over the damping.

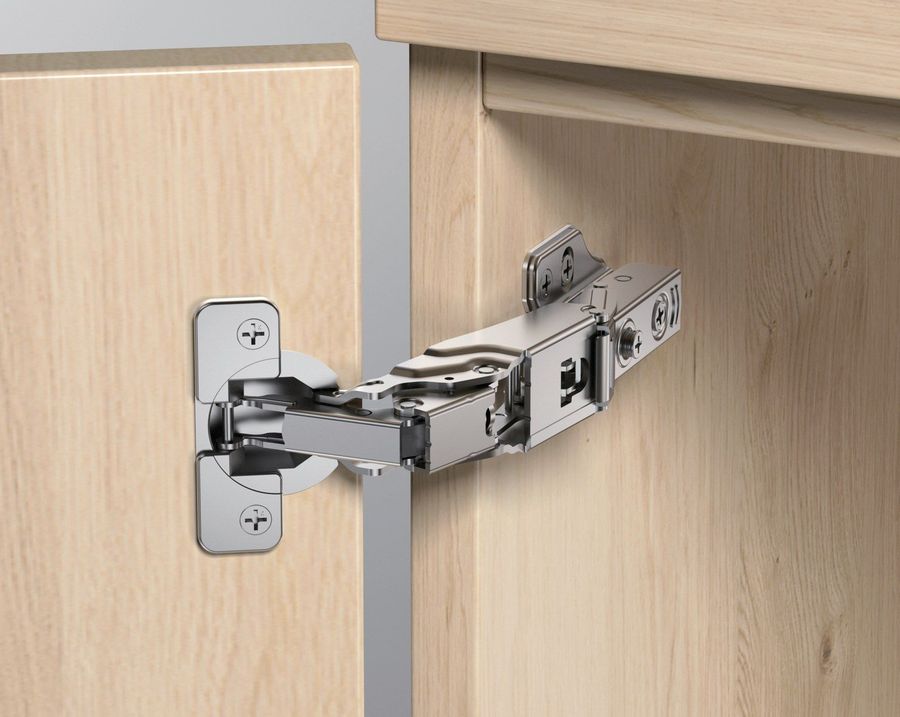

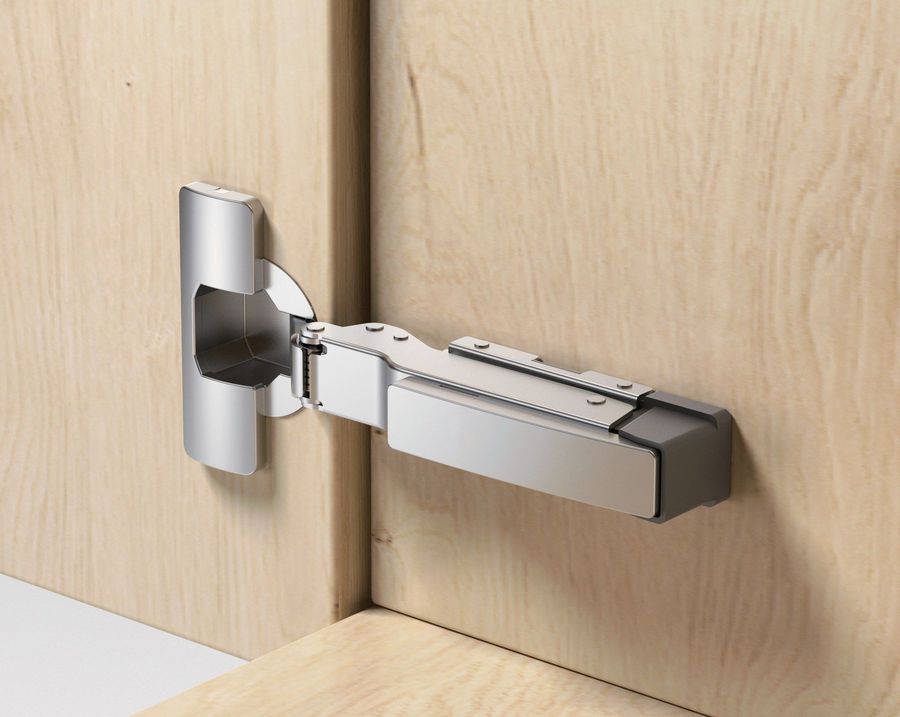

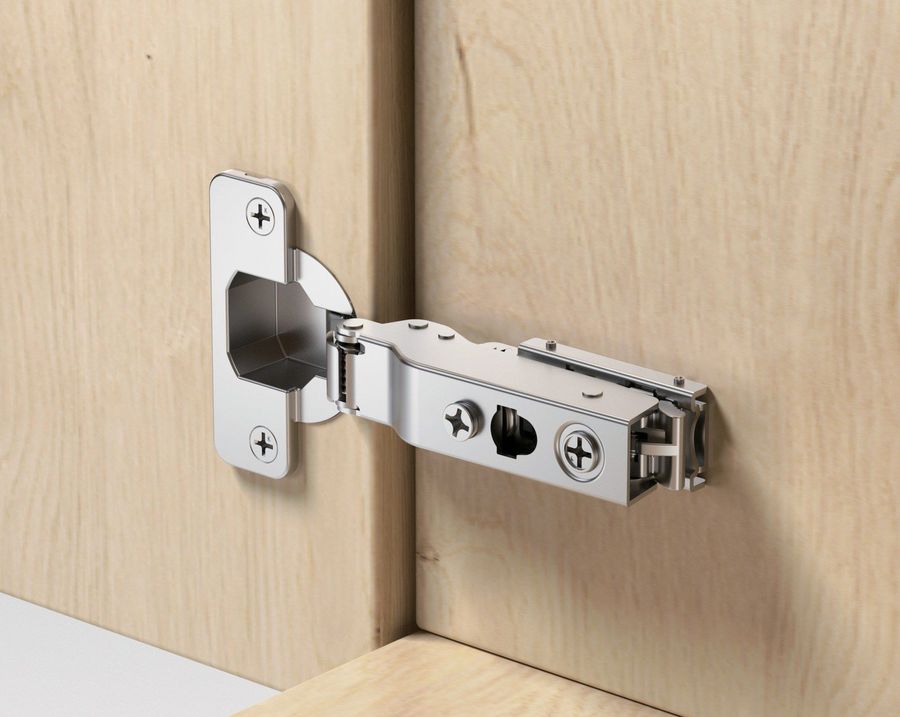

View GSA105- Hold range by modelPosition hold runs from 45° to each hinge’s maximum opening: 45°–105° on GS105, GSA105 and GSM105, 45°–100° on SD100, and 45°–155° on GS155.

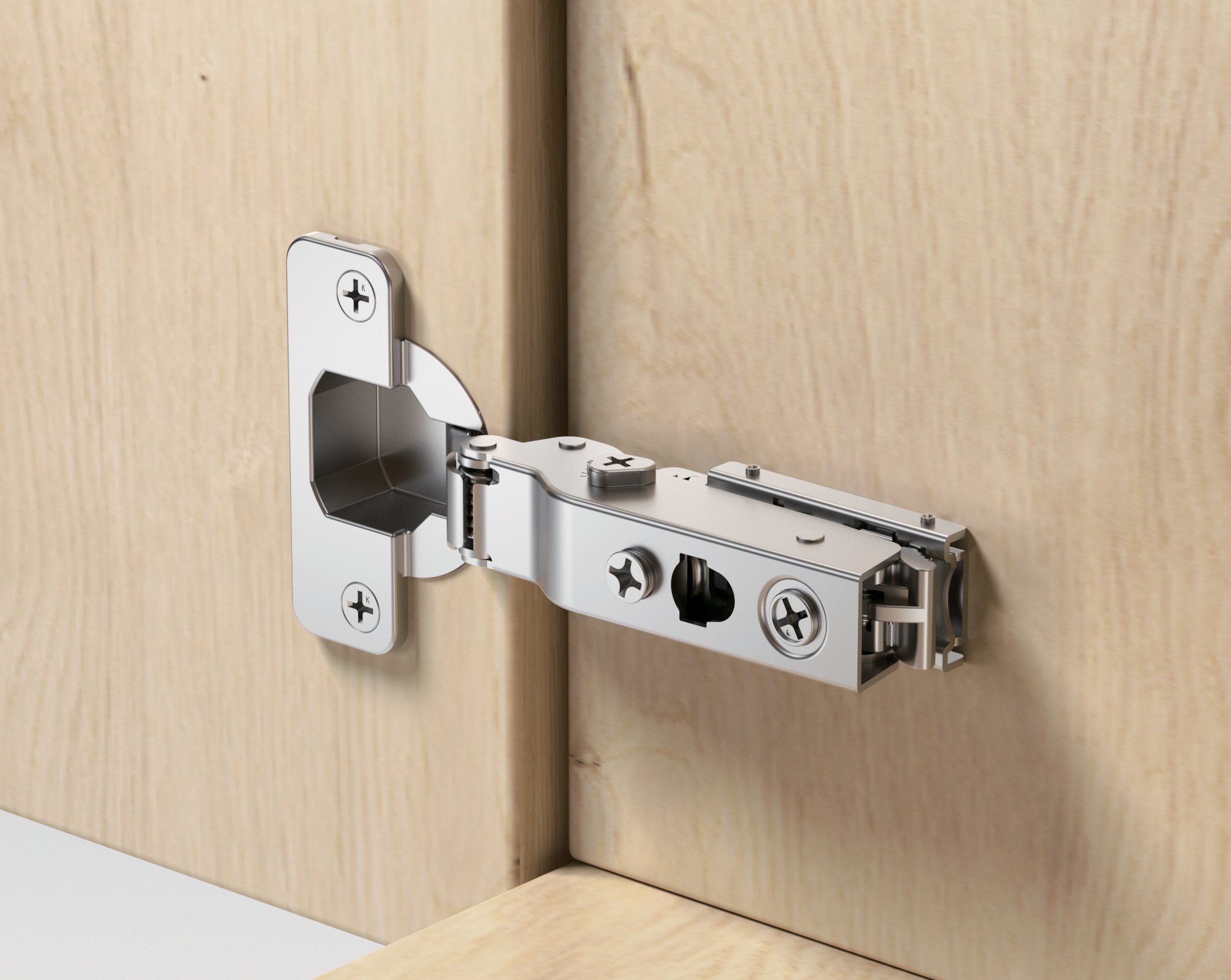

- GSA105 · Damping adjustmentFine-tune the closing response to suit the door.
- GSA105 · soft-close deactivation switchDeactivate or reactivate soft-close as the application requires.

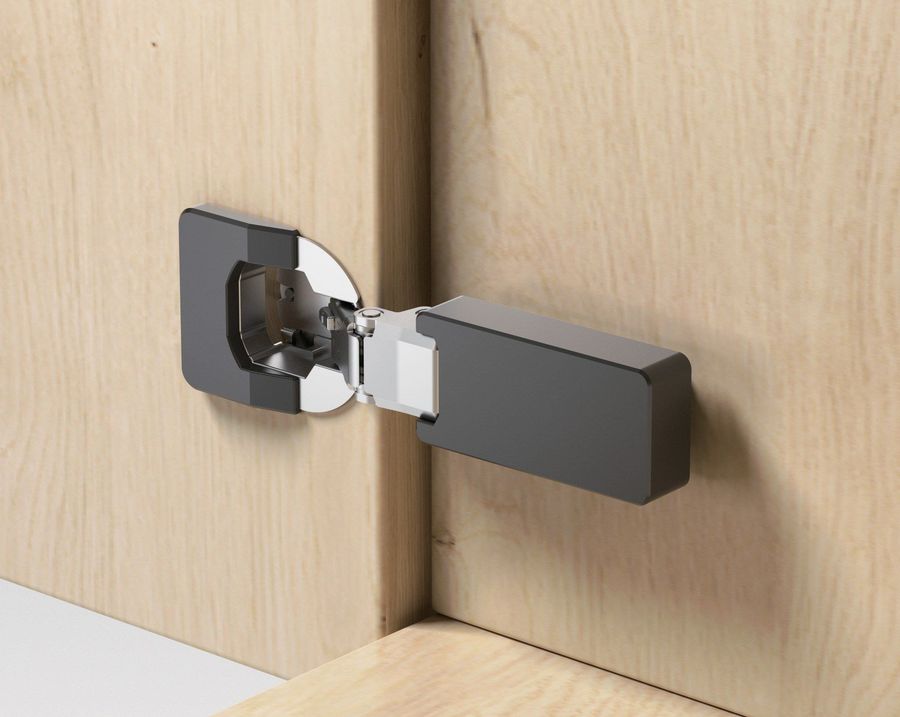

- SD100 · Cup-integrated damperThe damper sits in the hinge cup, preserving clearance around drawers and shelves; it also has a soft-close deactivation switch.
Hinges with Glidex-Sys™
Documents
High-resolution PDFs: Catalogue (47 MB) · Selection & Ordering Guide (15.7 MB)
Get technical guidance for your application
Whether you are optimizing an existing production line or specifying hardware for a new program, share your cabinet geometry and functional requirements with us. Our team will recommend the ideal hinge and mounting plate configuration, supported by tailored evaluation sample kits for your production testing.
- Application engineering support
- Evaluation sample kits
- Custom OEM specifications
- Flexible order volumes
- B2B supply consistency
